1. Overview of Danfoss Drives

Danfoss is a global industrial group headquartered in Denmark, renowned for its expertise in industrial automation and energy management. Danfoss drives are highly regarded for their durability, stable performance, flexible control, and optimized energy consumption.
Among them, two standout product lines—AutomationDrive FC302 and HVAC Drive FC102—are widely applied across modern industries.

2. Danfoss FC302 AutomationDrive – Features & Specifications

2.1. General Introduction

The Danfoss FC302 belongs to the AutomationDrive series and is specially designed for high-performance motor control applications such as concrete mixing systems, food & beverage production, chemical industries, and other manufacturing sectors.

2.2. Technical Specifications

Power Supply & Output Range:

• 3-phase 200–240V: 0.25 kW – 37 kW

• 3-phase 380–500V: 0.37 kW – 1100 kW

• 3-phase 525–600V: 0.75 kW – 75 kW

• 3-phase 525–690V: 1.1 kW – 1400 kW

Input Frequency: 50/60 Hz
Output Frequency: 0–590 Hz
Power Factor: >0.98
EMC Filter: Integrated (to reduce electromagnetic interference)
Protection Ratings: IP00/20/21/54/55/66 (configurable based on installation environment)

2.3. Communication & Connectivity

Supports a wide range of industrial communication protocols via MCA cards:
Profinet, Ethernet/IP, Profibus DP, Modbus TCP, DeviceNet, CANopen, EtherCAT, Powerlink, etc.
Easily integrates into SCADA and PLC systems.

2.4. I/O and Expansion Capabilities

• 6 Digital Inputs (0–24VDC)

• 2 Analog Inputs (-10 to 10V or 0/4-20mA)

• 2 Digital Outputs (0–24VDC)

• 1 Analog Output (0/4-20mA)

• 2 Relay Outputs

• 2 Pulse/Encoder Inputs

Expandable via MCA and MCB modules.

2.5. Setup & Configuration

• Supports setup via detachable LCP or Danfoss MCT10 software

• Easy backup and restore of parameters

2.6. Key Features

• Motor protection: against short-circuit, phase loss, overheating

• Precise sensorless vector control

• Energy savings through intelligent operating algorithms

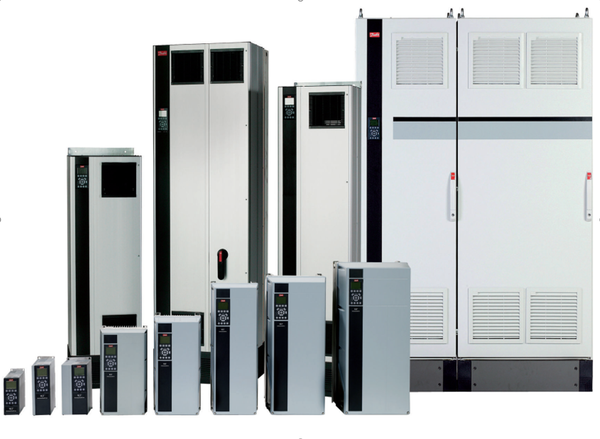

3. Danfoss FC102 HVAC Drive – Features & Specifications

3.1. General Introduction

The FC102 is designed specifically for HVAC systems (Heating, Ventilation, Air Conditioning), such as fans, pumps, and centralized air conditioning. It is optimized for continuous operation and energy efficiency.

3.2. Technical Specifications

Power Supply & Output Range:

• 3 x 200–240V: 1.1 – 45 kW

• 3 x 380–480V: 1.1 – 1000 kW

• 3 x 525–600V: 1.1 – 90 kW

• 3 x 525–690V: 1.1 – 1400 kW

Input Frequency: 50/60 Hz
Output Frequency: 0–590 Hz
Power Factor: >0.98

3.3. Communication & Connectivity

Supports protocols including:
Profinet, Ethernet/IP, Profibus DP, Modbus TCP, DeviceNet, BACnet, BACnet/IP, LonWorks
Easily connects with Building Management Systems (BMS).

3.4. I/O and Expansion Capabilities

• 6 Digital Inputs

• 2 Analog Inputs

• 2 Pulse Inputs

• 2 Digital Outputs

• 1 Analog Output

• 2 Relay Outputs

Expandable via MCB modules.

3.5. Setup & Configuration

• LCP102 (wired) and LCP103 (wireless) panels available

• User-friendly interface with multilingual support

3.6. Key Features

• Advanced fan and pump control algorithms

• Built-in powerful PID control

• Automatic energy optimization based on real-time load

4. Outstanding Advantages of Danfoss Drives

• Superior efficiency: Optimize motor operation and minimize power loss

• High durability: Designed to withstand harsh environments

• Easy maintenance: Quick module replacement

• Flexible scalability: Suitable for both small and large-scale systems

• Versatile applications: Compatible with various motor types

•



5. Comprehensive Support from HTEN

As the official distributor of Danfoss in Vietnam, HTEN offers full-service support including:

• Technical consulting: Helping clients choose tailored solutions

• Installation & commissioning: Professional on-site services

• Maintenance & repair: Scheduled maintenance and rapid troubleshooting

• Training: Workshops to ensure optimal product usage and understanding

Conclusion

Danfoss FC102 and FC302 drives are advanced motor control solutions that meet the demands of modern HVAC and industrial automation systems. With dedicated support from HTEN, businesses can trust in both product quality and service excellence—enhancing performance while reducing operational costs.
